Cable Drum Nailing Processing

PRODUCT CODE : FMCIH CATEGORY : NAILING MACHINES
Cable Drum Nailing Processing Cable Drum Nailing Processing Cable Drum Nailing Processing Cable Drum Nailing Processing Cable Drum Nailing Processing Cable Drum Nailing Processing
  • Product Information
  • Product Videos
  • Request an Offer for the Product

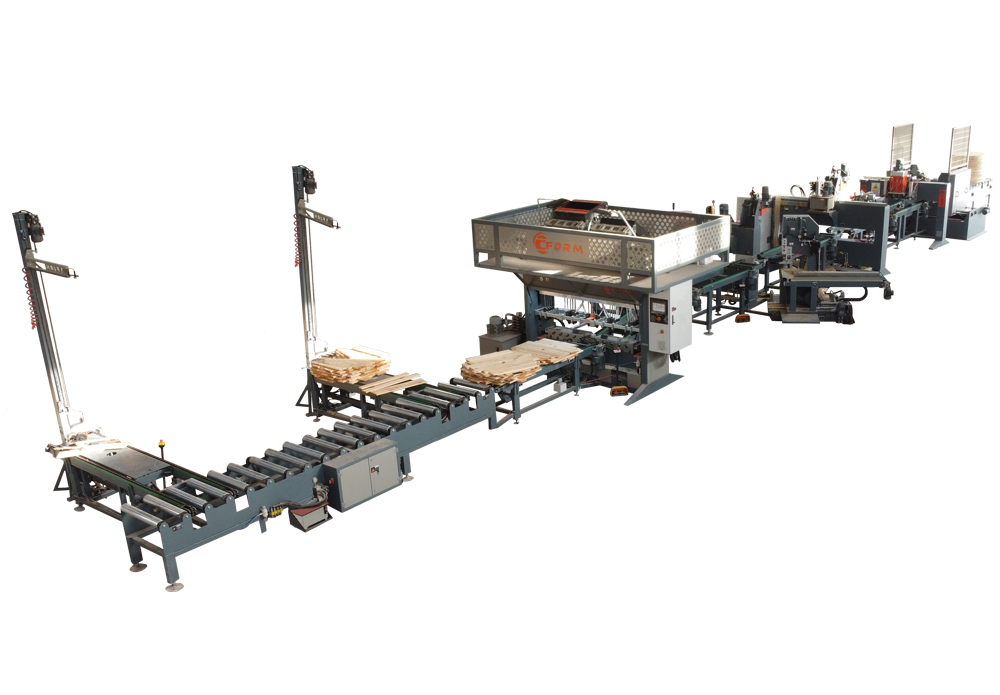

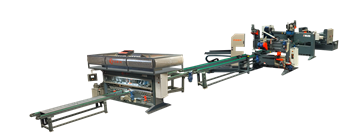

1-Cable collecting table
2- Longitudinally conveyor band with chain
3- Transversal conveyor band with chain
4-Longitudinally conveyor band for nailing
5-Cable drum naling unit
6-Longitudinally band
7-Cable drum processing unit
8-Longitudinally band
9-Cable drum lift
SPECIFICATIONS:
1- 2 pieces steel construction(body) collecting table for cable
drum boards (Tighten with pneumatic board)
2- 2 pieces 1” 3m. Stell construction(body) longitudinally
conveyor band with chain (0,55 Kw with reduktor)
3- 7,5 m. transversal conveyeur band
4- 1 piece 8 m. 1 ” up and down spécial mouvement
longitudinally conveyor band with chain
(2 pièces 0,55 Kw engine)

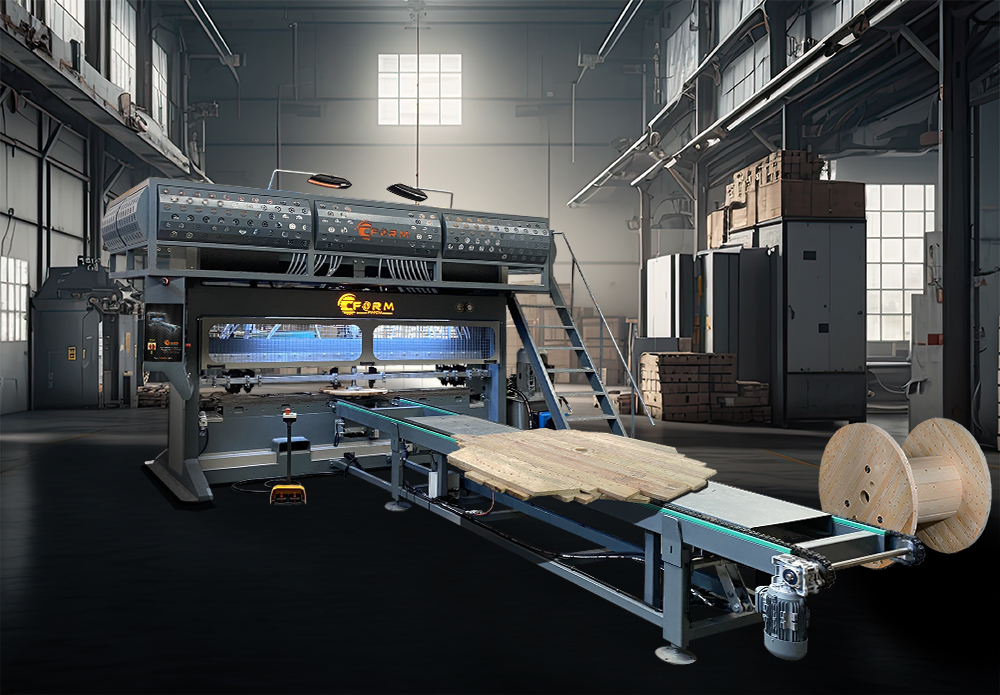

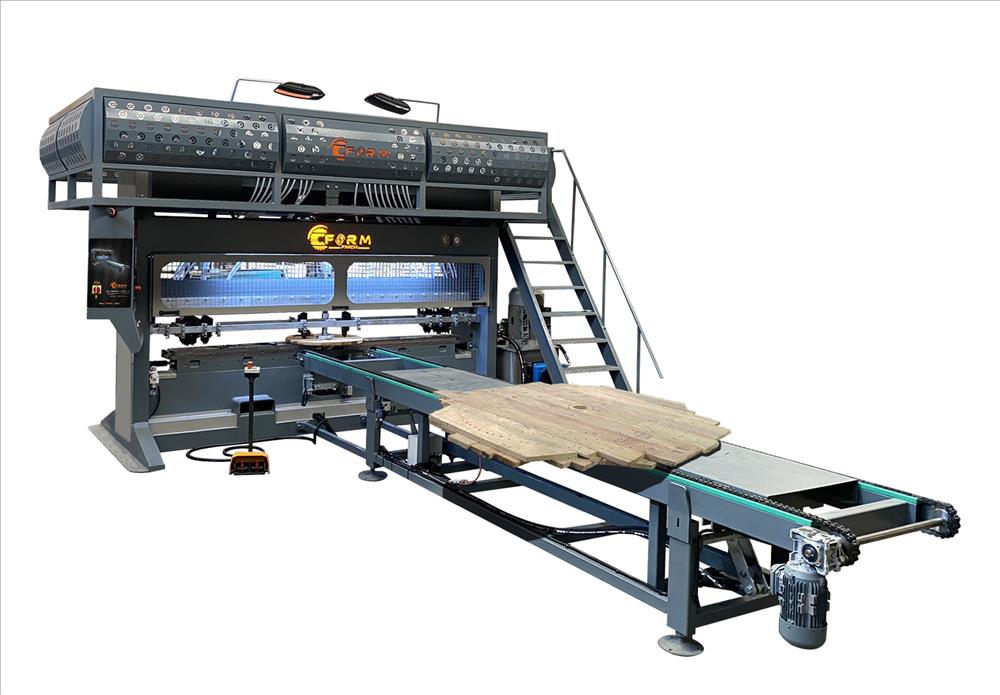

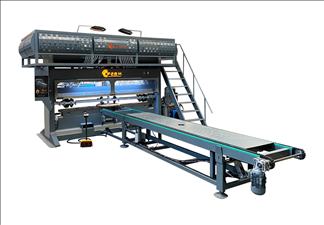

5- Cable drum nailing unit
Diameter of cable drum nailing : Min: 800mm Max: 3200mm
Hole diameter of bobbin(drum) : Min: 50mm Max: 150 mm
Thickness of bobbin (drum)nailing : Min: 20 mm Max: 100mm
Bobbin(drum) tuming unit : Automatic
Processing speed : 1 min.
Number of gun : Max. 20 pcs.
Type of nails : Cast nails
Throwing nail unit : Pneumatic and Automatic(2 pcs.)
Trowing nail number : 24 pcs.
Nail drive unit : Hydraulic
Bending nail unit : Hydraulic
Working system : PLC control with digital screen
Electric capacity : 21,45 Kw
Machine Dimensions :
Witdh: 3450
Length: 1800mm
Height: 3000mm
Weight : 3200kg
6- 5m. Up and down mouvement longitudinally conveyor band with chain
(0,55 kw engine)

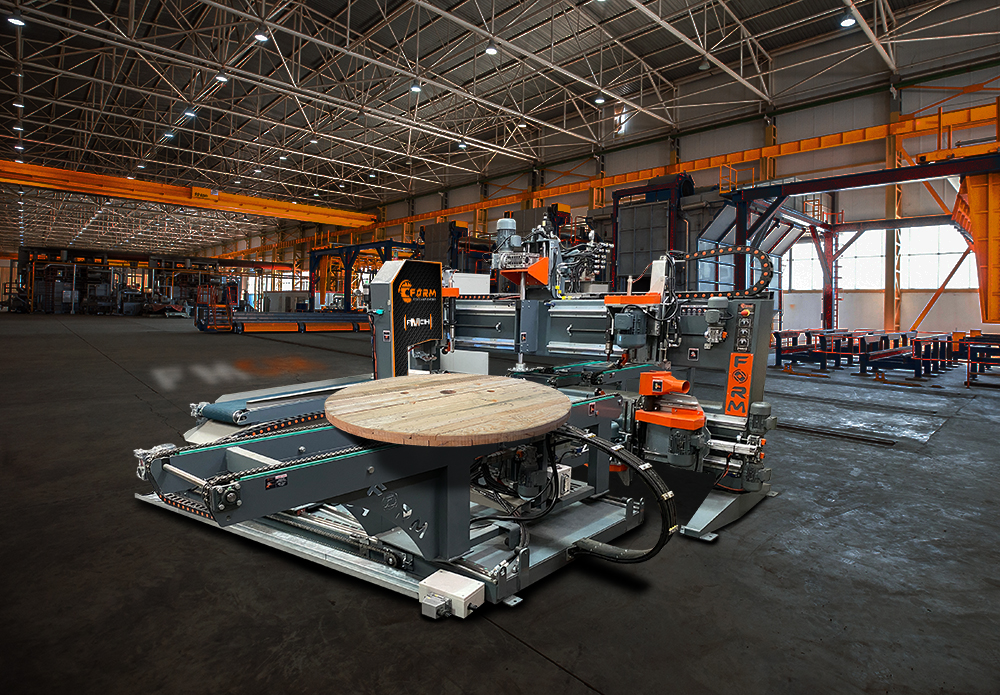

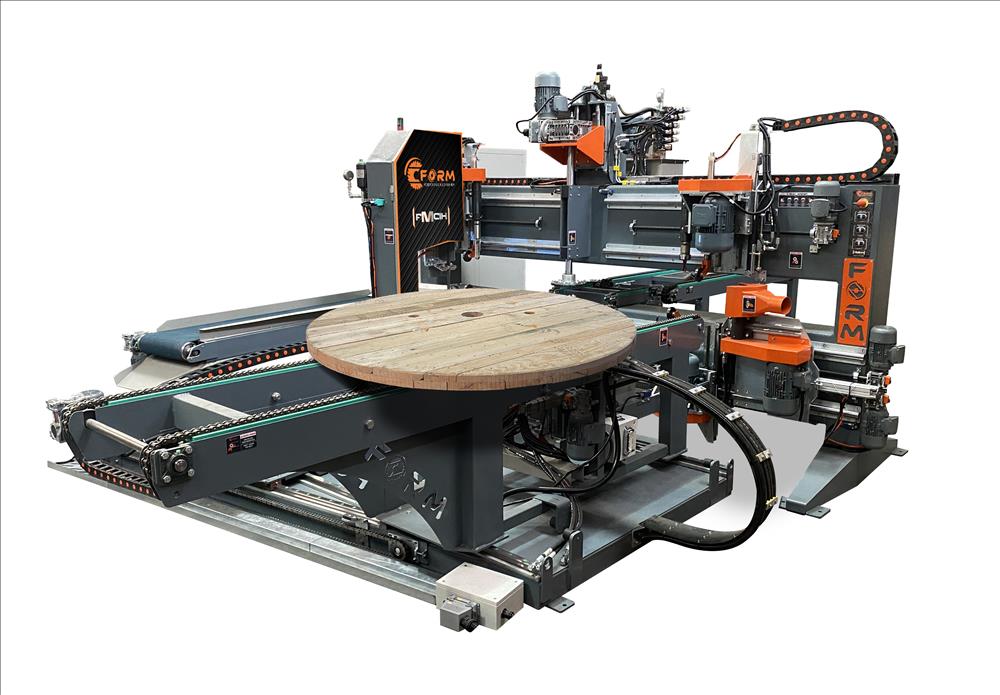

7- Drum processing unit
70cm band for cutting
Automatic band scrolling unit with linear rail
Automatic drum center bending unit
Automatic board canal chamfering with linear rail
Automatic bolt hole unit
Automatic spacer hole unit
2 pcs. (from up and down) cable canal carving and graduated
processing unit
Automatic chamfering
Full automatic working and digital screen with PLC control
Center turning unit(control with reductor and servo engine)
All processing units have choises of servo or engine PC kontrol
8- 3,5m. 1” longitudinally conveyor band with chain(0,75 kw engine)
9- Stell construction 1” drum bringing down lift with chain
(pneumatic 0,37 kw engine)
Total length: 25m.
Total witdh 7,5m.
Total power : 24,77 kw


  • Cable Drum Size
    Cable Drum Size
    Min. 600mm - Max. 3200mm
