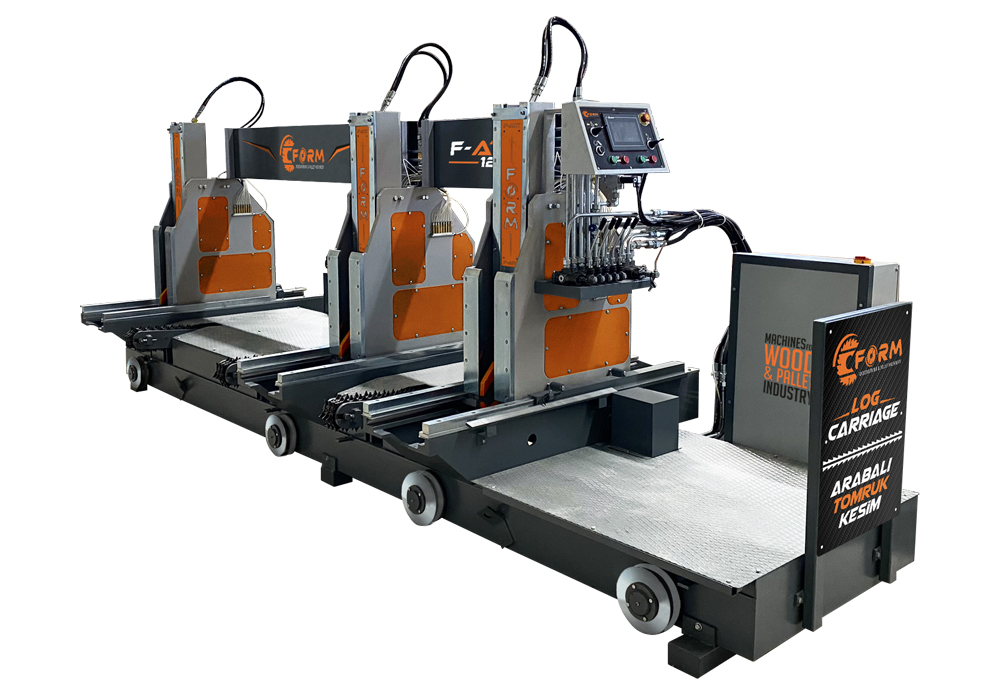

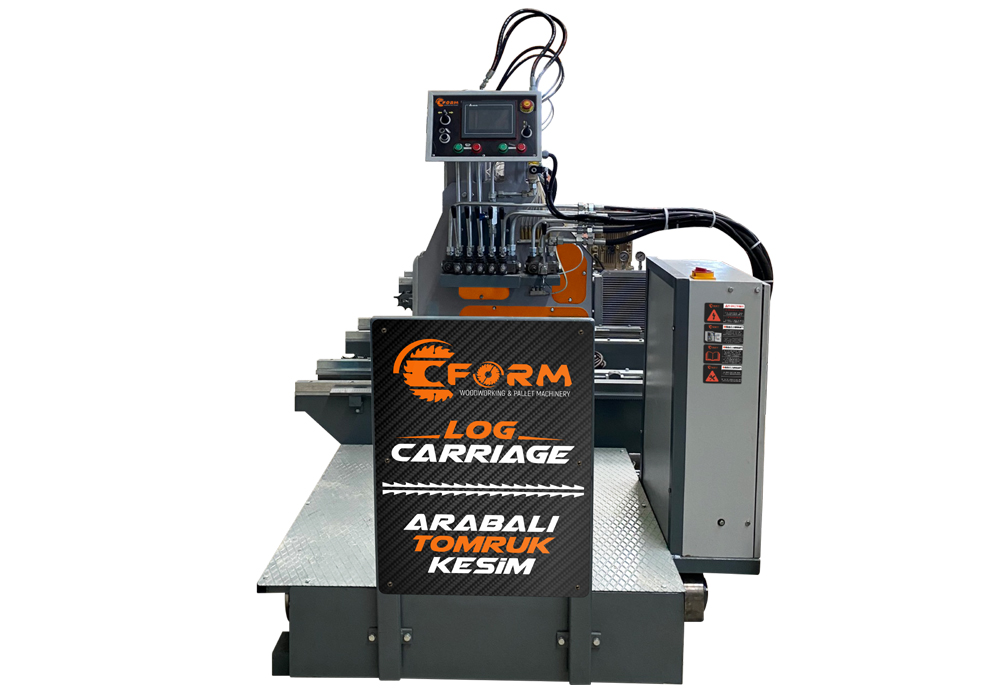

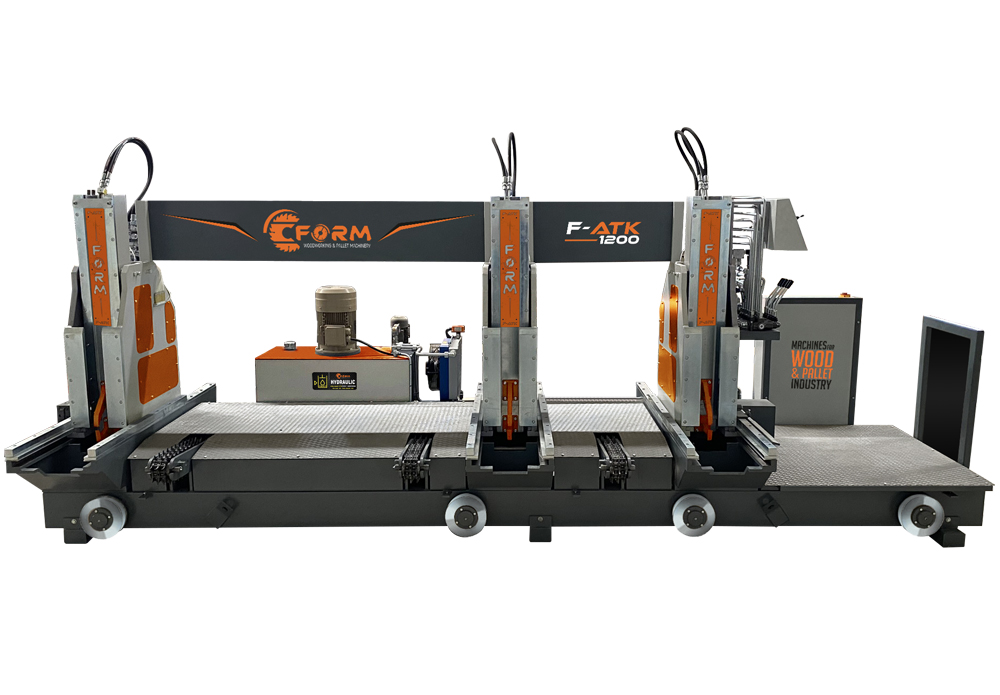

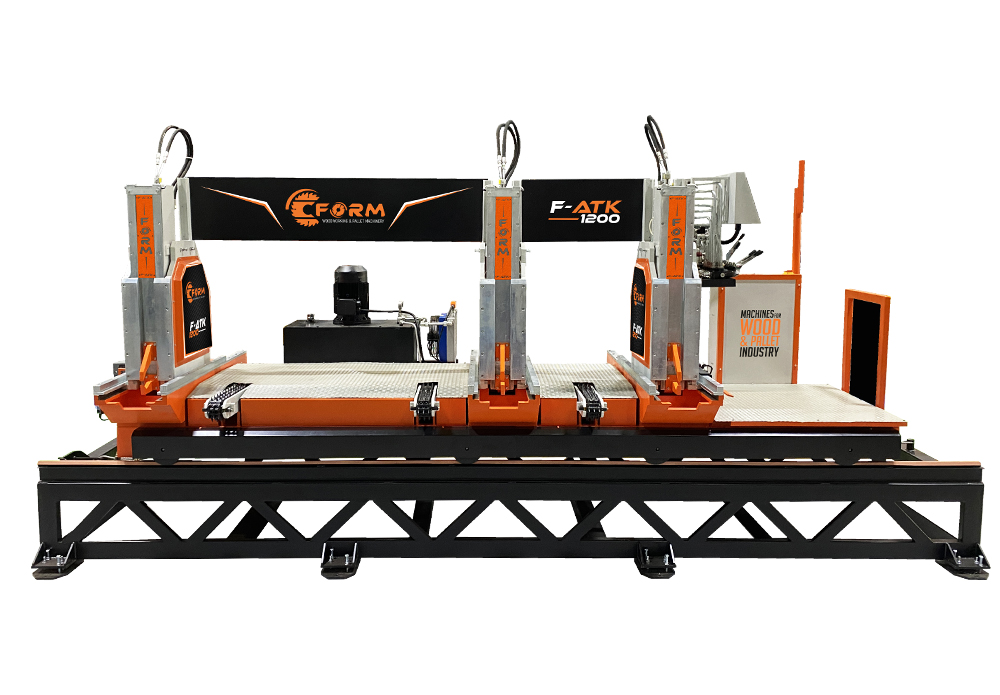

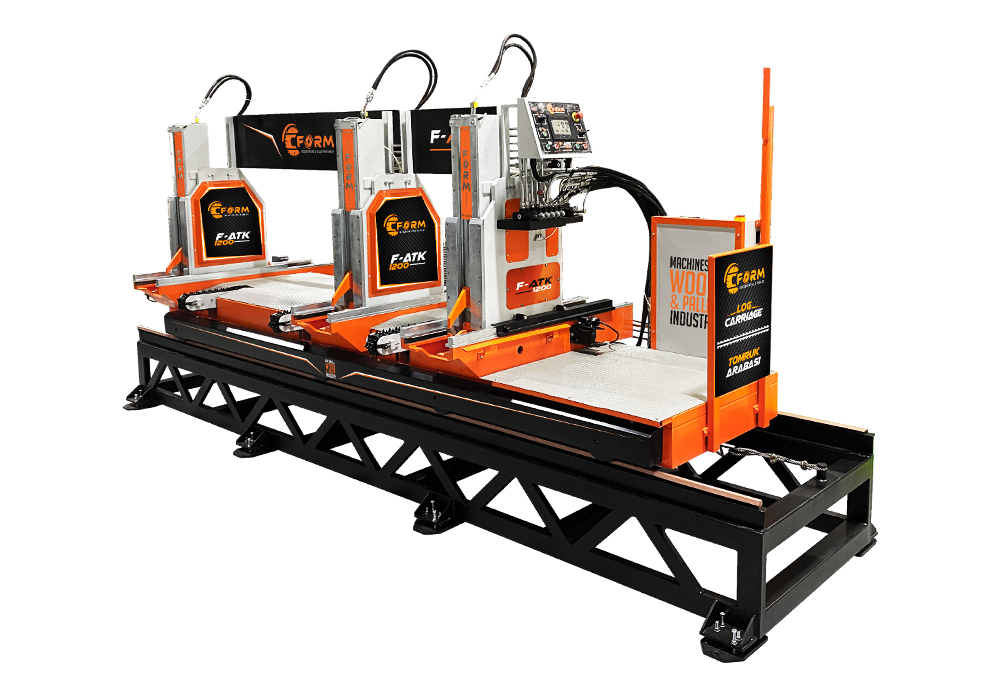

LOG CARRIAGE (STANDARD ECO MODEL) F - ATK 1200
The lifting movement of log clamping hooks, supports and rods are provided by hydraulics.
The movement of the log trolley is at speed of 0-72 m/minute with a hyraulically driven
rope system.
The forward and backward movement of the heads, which are driven by the AC drive control reducer motor, is provided by the rack gear.
The operator is sitting on the log car.
Thanks to its digital control panel, it allows perfect thickness adjustment in exact mm.
There is lubricant device in the heads to lubricate the slides.
It has a 5.000kg lifting feature, a 90 degree moving turning system, and a motor
driven reducer.
The wheels are from solid steel.
Log Diameter : Max. 1200 mm
Headblock Opening : 1.000 mm
Hook Opening Distance : 1.000 mm
Distance Between Headblocks : 1100-2300
Hydraulic Unit Motor : 11kW
Lubrication System : Automatic
Carriage Drive Motor : Hidromotor
Carriage Feed Speed : 85mt/dk-min.
Control Panel : Digital Control Panel
Rail Length : 15mt.
Rail Width : 1240 mm.
Weight : 4300kg
Dimensions : 5500 / 2000 / 2000
