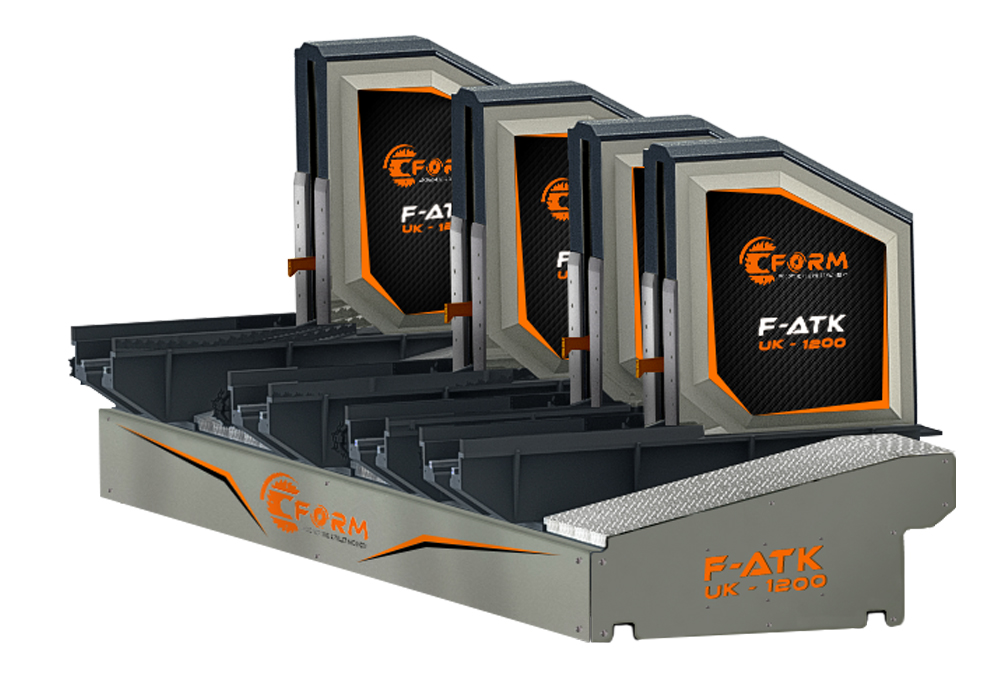

LOG CARRIAGE (REMOTE-CONTROLLED) F - ATK UK - 1200
The lifting movement of log clamping hooks, supports and rods are provided by
hydraulics.
The log carriage movement is driven by a hydraulic-powered cable system with a
speed range of 0-72m/min.
The forward and backward movement of the heads, which are driven by the drive
control servo-motor, is provided by the rack gear.
The operator is on the log carriager.
Thanks to its digital control panel, it allows perfect thickness adjustment in exact mm.
There is lubricant device in the heads to lubricate the slides.
It has a 5.000kg lifting feature, a 90 degree moving turning system, and a motor
driven reducer.
Easy, understandable and practical control panel and setting program, with comfortable and spacious operator control cabinet.
The wheels are from solid steel.
Independently working heads!
Log Diameter : Max. 1200 mm
Hydraulic Unit Motor : 11kW - 15kW(op.) - 18,5kW(op.)
Lubrication System : Automatic
Carriage Drive Motor : Hydromotor / Gearmotor(op.)
Carriage Feed Speed : 111mt/dk-min.
Control Panel : Digital Control Panel
Rail Length : 15mt.
Rail Width : 1255 mm.
Headblock Opening : 1000 mm.
Distance Between Headblocks : 900-1200-2500 mm (4 Headblock)
Hook Opening Distance : 1030 mm.
Hook Forward-Backward Movement Distance : Min. 40 mm. - Max. 190 mm.
