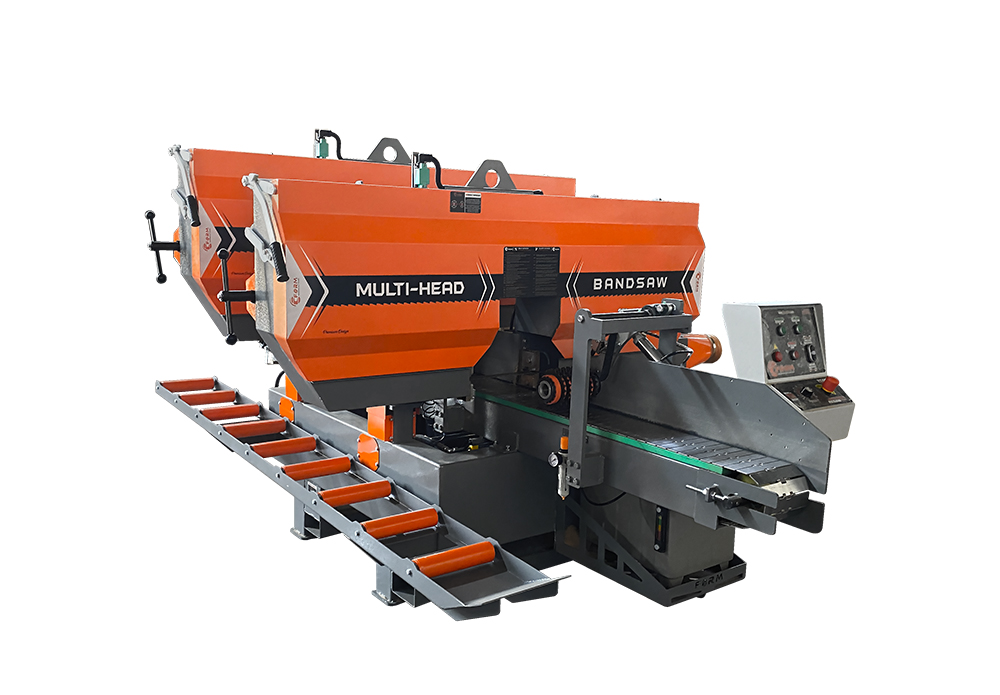

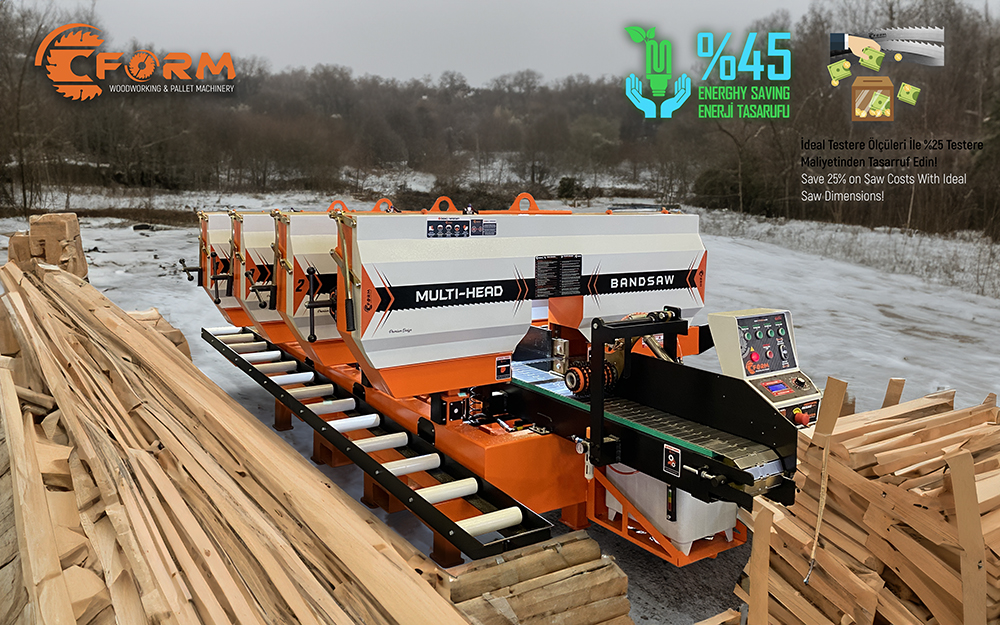

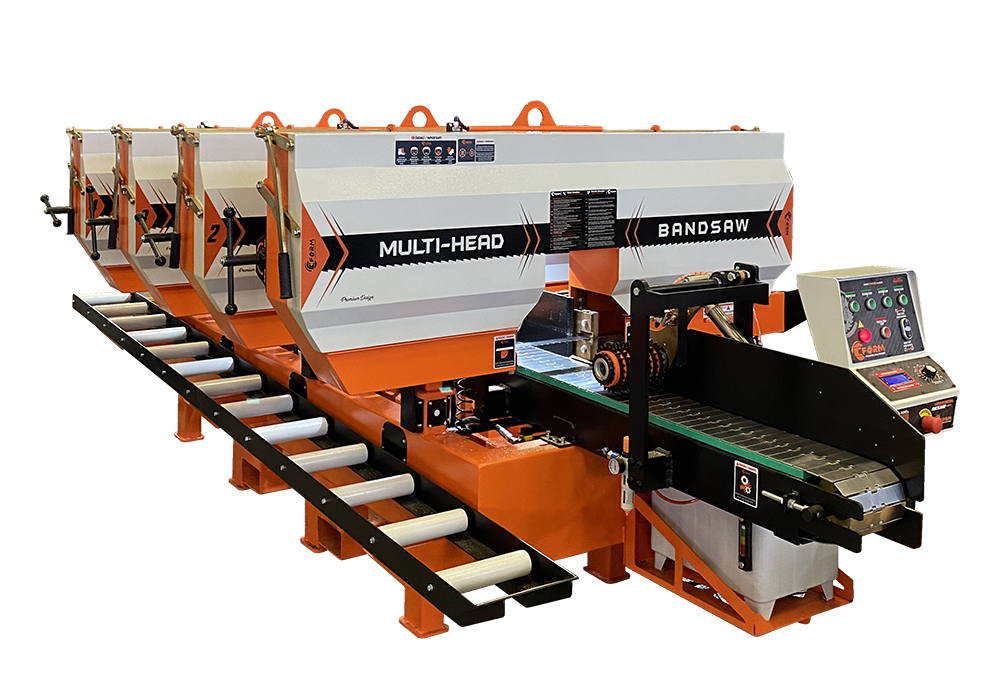

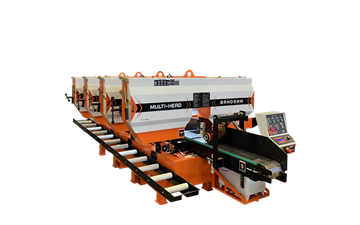

HORIZONTAL MULTI-HEAD SAW YCDM 600
Up to 6 pieces of slicing at a time.
Thin saws can be used for precise cutting and higher efficiency.
Up to 6 heads are produced to increase efficiency.
Chip outlet and suction hydraulic pipe connector.
Fiber nozzle for fixed cutting.
Water cooling system.
Return Belt.
Emergency-Stop buttons.
Top pressure roller sensor.
Speed Adjustment System. (Optional)
Cutting Height: Max. 250 mm
Cutting Width: Max. 200 mm
Flywheel Diameter: 600 mm.
Flywheel Width: 40 mm.
Cutting Speed: Max. 40mt. / min.
Main Engine : 7.5kW (For Each Body)
Total Power : 33kW (4-Body)
Power Supply : 380V / 50Hz, 3PH
