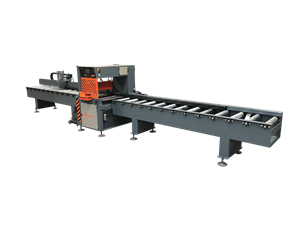

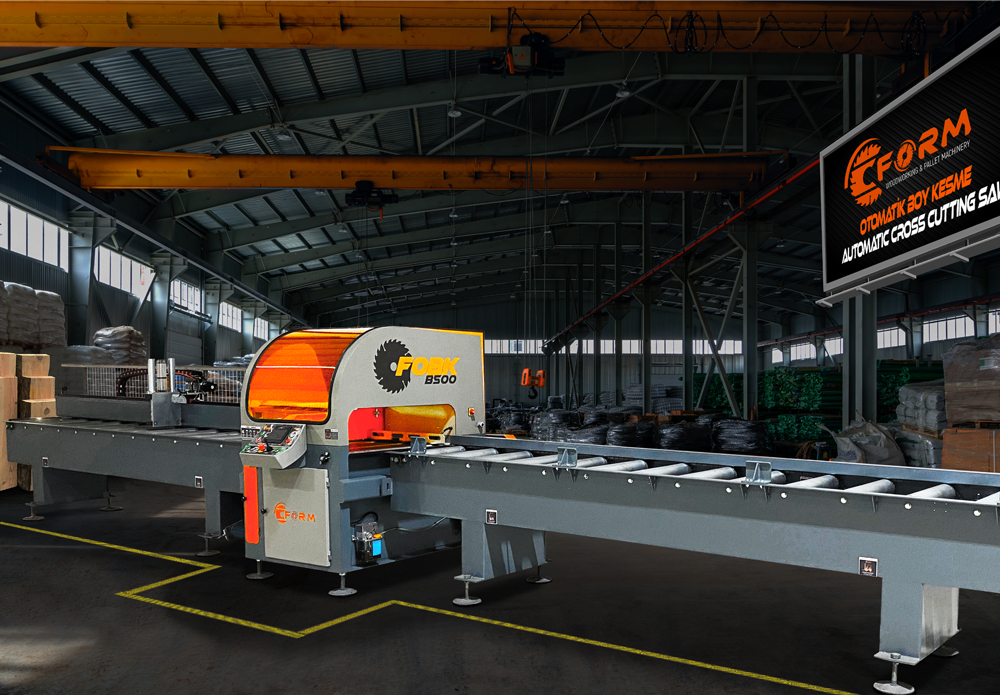

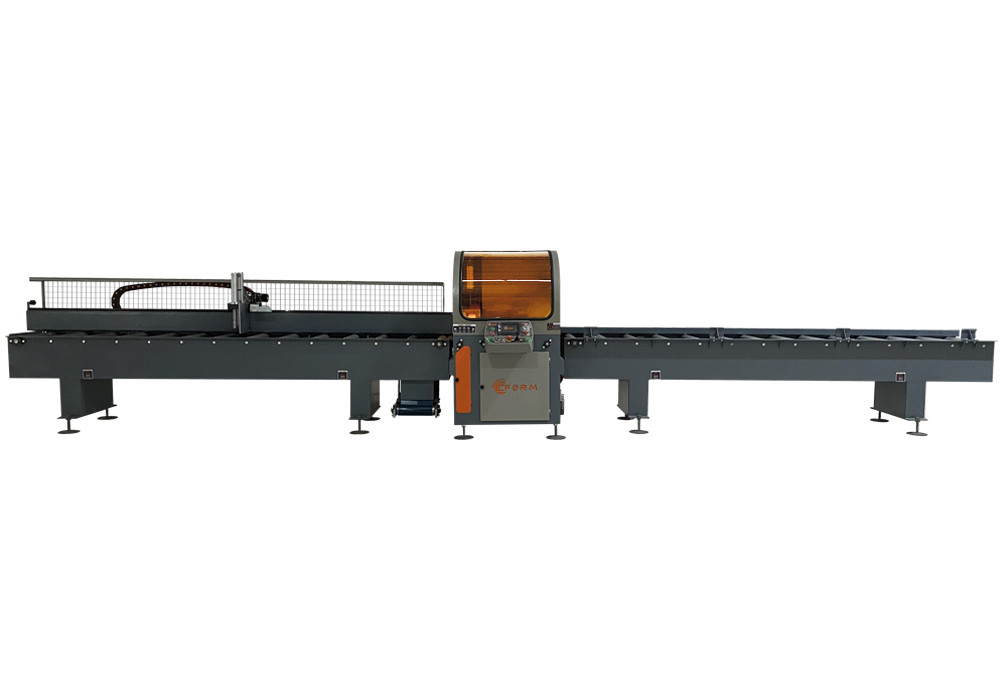

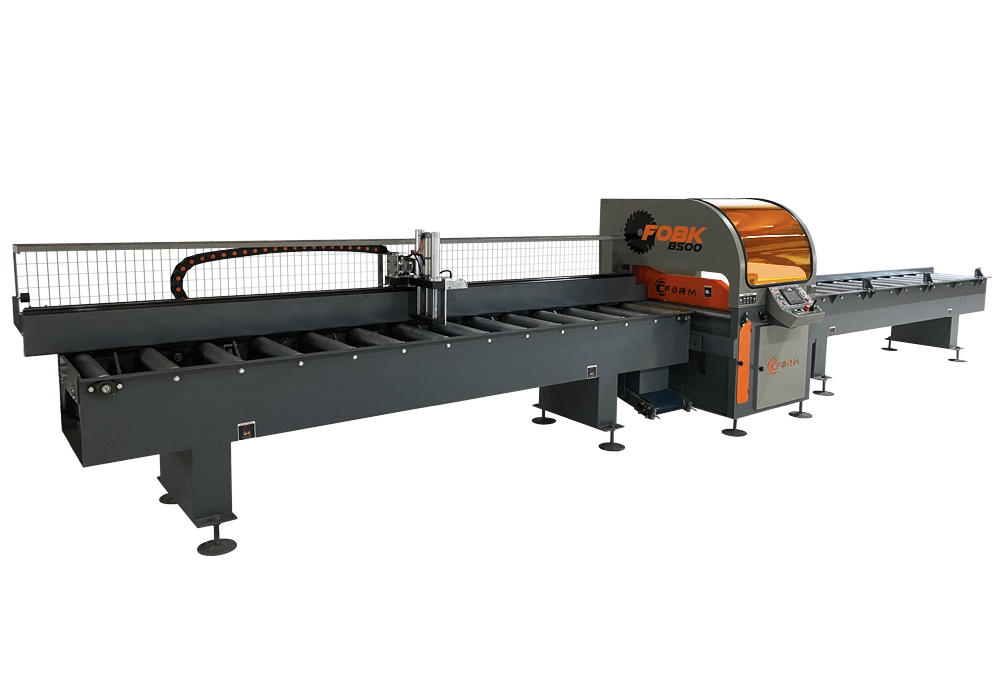

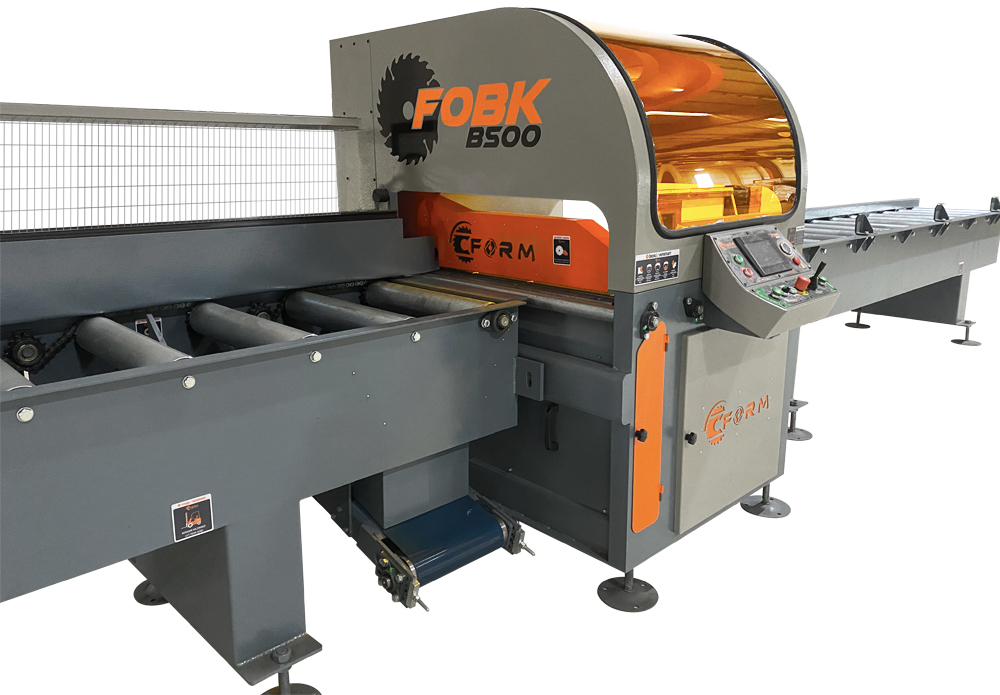

AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500)

PRODUCT CODE : FOBK B500 CATEGORY : CUTTING MACHINES
AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500) AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500) AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500) AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500) AUTOMATIC SAW TRIMMER (SINGLE) (FTOB B500)
  • Product Information
  • Product Videos
  • Request an Offer for the Product

-Extra thick frame
-Special alloy cast iron crowned fly wheels
-Manual lubrication
-Faster size changing with servo motor system
-Digital touch screen with automatic size adjustment
-Lineer slide and screw axe system that provides size adjustment

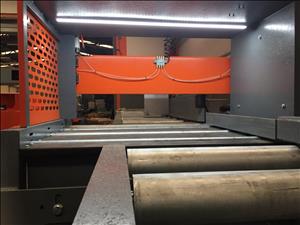

-Moving rollers slat conveyor
-Pneumatic clamping pressings

Cutting height : Min.10mm Max.200 mm
Cutting width : Max.500mm
Cutting Lenght : Min. 300mm Max.4000mm
Axe motor of circular saw : 11kw
Circular saw diameter : Ø550mm
Feeding : Manual&Automatic
Electrical capacity : Min. 13,6 kw


  • Weight
    Weight
    3070 kg
  • Total Power
    Total Power
    16 kW
  • Saw Diameter
    Saw Diameter
    Ø 550mm
  • belt no
    belt no
    12,5 X 1325
